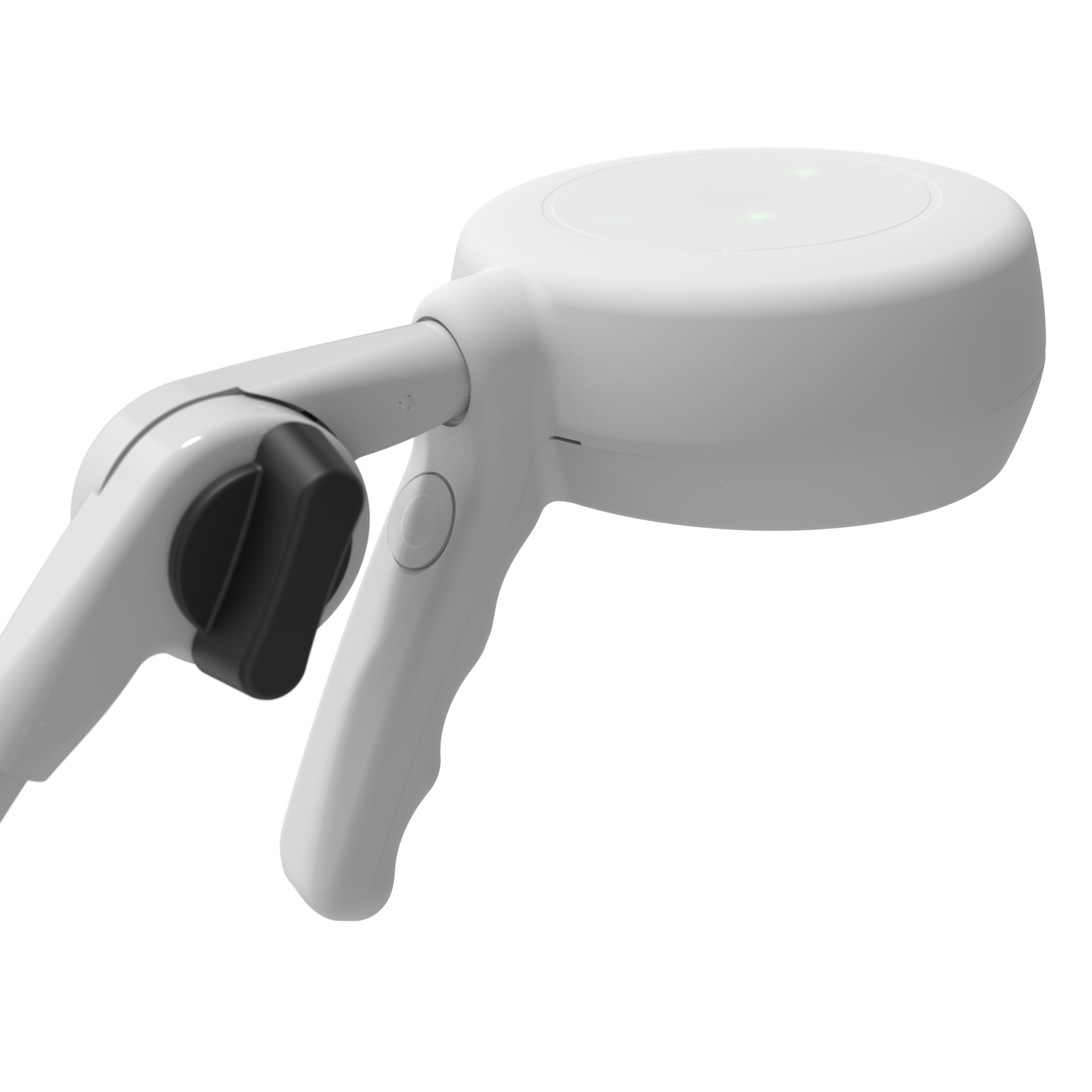

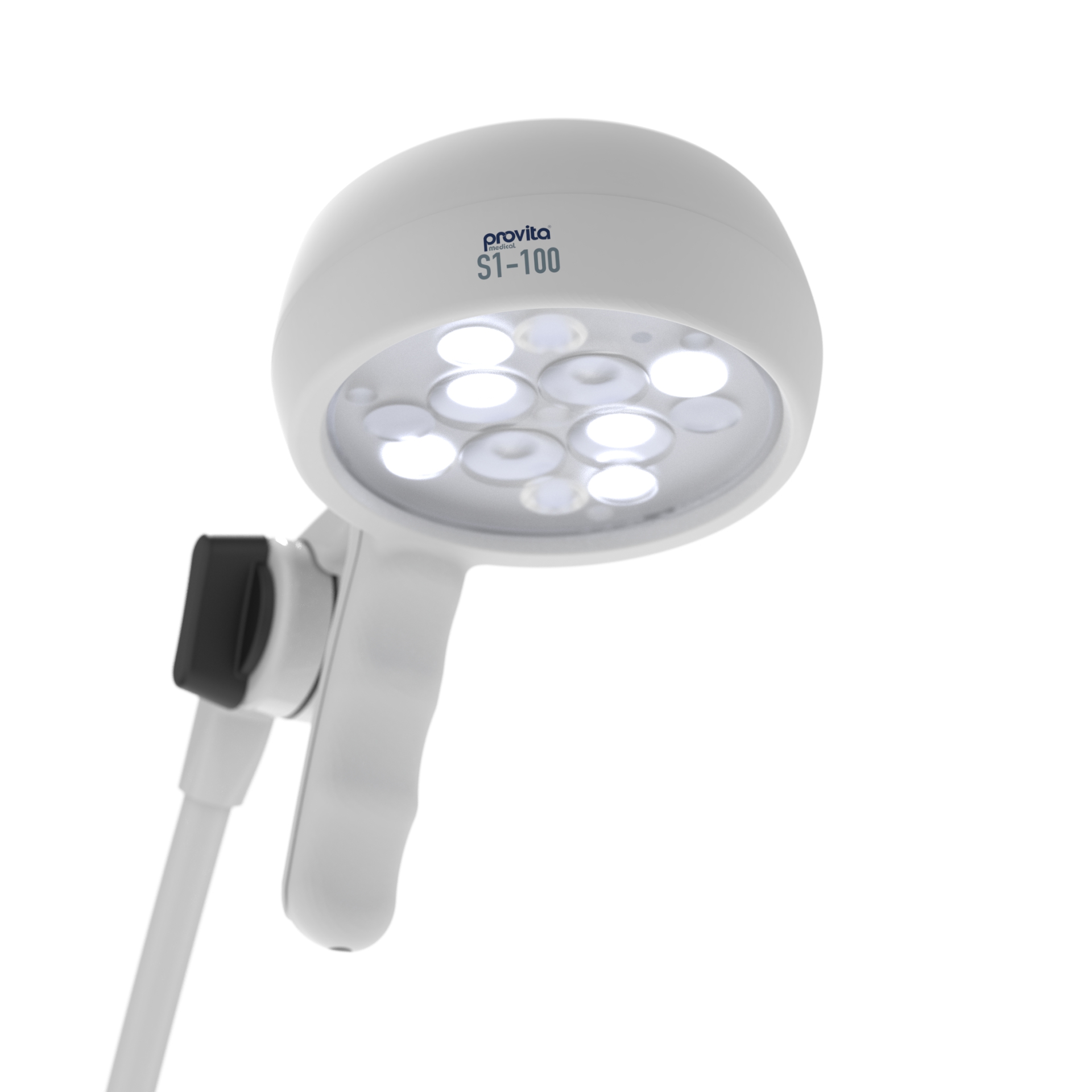

Provita Series 1-100 – Mobile examination lamp
with joint-arm and height-adjustable stand
Features
-
- Spring support for better usability
- Perfectly focused lighting clearly defined light field
- Impact resistant housing best and sturdy plastic properties
- Energy efficient modern and economical LED technology
- Optimal illuminance with dimming function
- Touchless Motion control
Advantages
- Brilliant, non-reflective illumination of the treatment level helps the examining doctor during diagnosis
- Extended life time – maximum energy efficiency – minimal maintenance
Economy
- High life expectancy of the light source
- Low maintenance effort
Safety
- Protected interior cable management
- The base legs are sealed with plastic plugs (no risk of injury)
- Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance
- Electrically conductive
Provita Series 1 Video
Specifications
| Light module: |
8 LEDs |
| Types of arm: |
Joint arm with spring balance joint |
| For attachement to : |
Height-adjustable stand with roller base |
| Working radius: |
800 mm |
| Colour of lamp: |
White |
| Joint pin: |
Ø 18, L 35 mm |
| Light source: |
LED, 9W |
| Light output: |
> 90.000 lx / 500 mm; 25.000 lx / 1000 mm |
| Luminous flux (lm): |
550 lm |
| Light field diameter D10: |
~ 130 / 250 mm at 500 / 1.000 mm |
| Light colour: |
~ 4000 ± 200 K |
| Colour rendering index: |
> Type 90 Ra |
| Life expectancy: |
> 50,000 h (light source) |
| Electrical mains: |
100 – 240 V, 50 – 60 Hz |
| Power switch: |
Integrated in the transformer housing |
| Motion control: |
Turn on/ off, Dimming |
| Type of height adjustment: |
One-hand height adjustment |
| Maximum length/height: |
1.475 mm |
| Minimum length/height: |
1.075 mm |

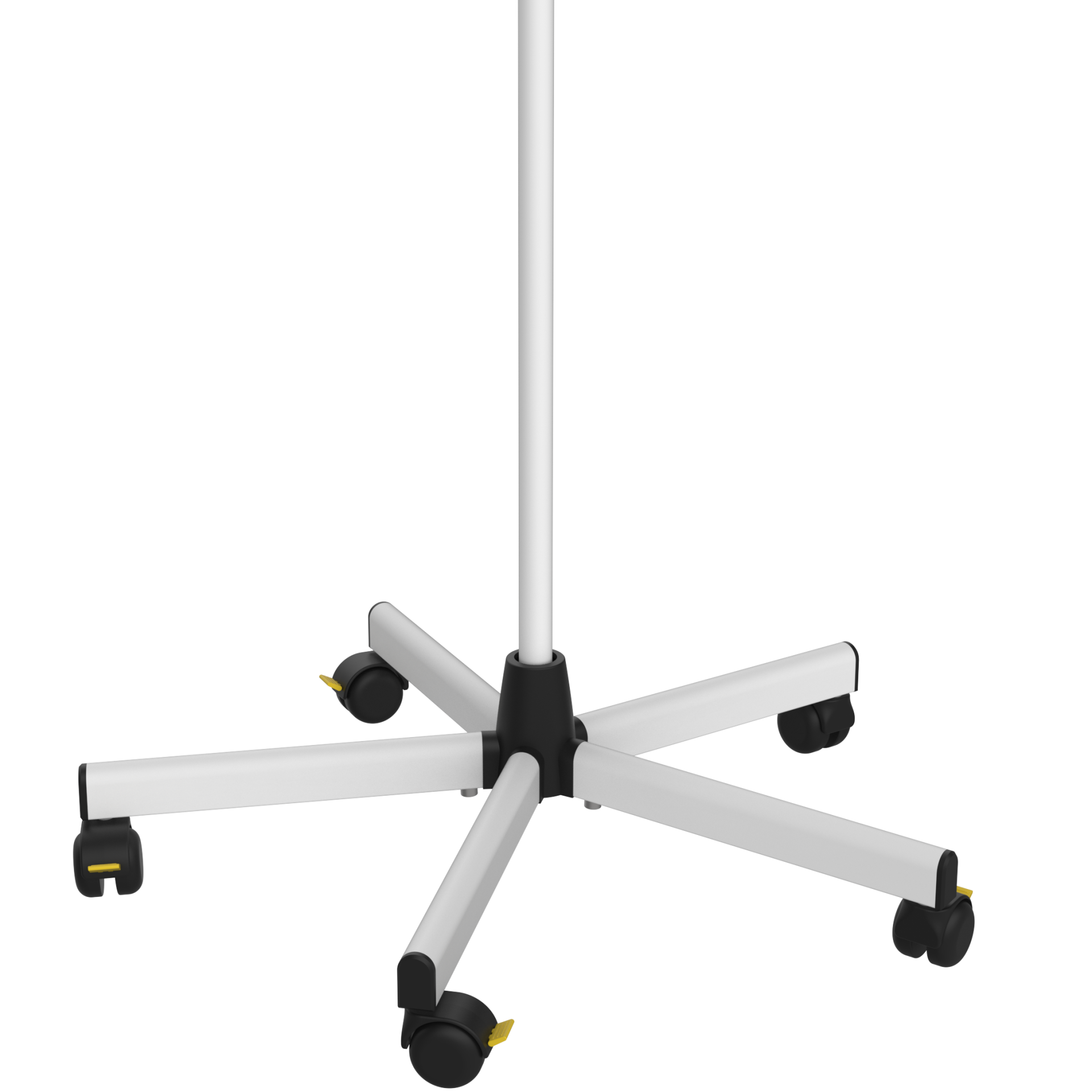

| Castor base: |
steel, white coated |
| Base diameter: |
Ø 635 mm |
| Castors: |
Twin castors |
| Castor diameter: |
Ø 50 mm |
| Number of castors: |
5 with brakes and elect. conductivity |
| Note: |
Due to measurement and production given data may deviate by approx. -10% to + 20%. |
