FLAEM HospiNeb

Compressor/Nebulizer for the administration of drugs by inhalation.

Powerful compressor/nebulizer, typically designed for use in the clinical environment.
Supplied complete with the RF7 Nebulizer chamber and includes adult and child mask, mouthpiece, nose clip and tubing.
Suitable for use with a wide range of alternative medication chambers due to is powerful performance.
Robust, designed to withstand to rigors of continuous clinical use.
Will not run hot even in continuous use due to its superior motor design.
Sturdy handle
Professional air filter
Cable storage compartment

Technical Features

Use	Continuous
Power supply	230V~ 50Hz 210VA
Air filtering	The device is equipped with a professional inlet air filter, which blocks impurities and preserves the integrity of the compressor, helping to guarantee the useful life of the appliance.
Compressor air output	14 l/min (approx)
Max pressure	3.5 ± 0.5 bar
Sound level (at 1 m)	57 dB (A) (approx)
Dimensions (length x width x height)	20 x 18 x 11 cm
Weight	1.8 Kg
Compliance	In compliance with EU regulation 2017/745 Medical Device Directive and following edits
	Phthalates free. In conformity with Reg. (EC) no.1907/2006
Warranty	3 Year component failure and/or manufacturing defects

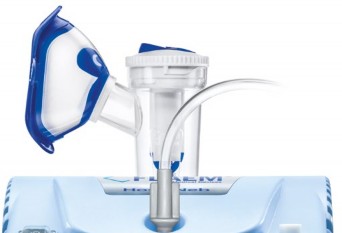

HospiNeb is supplied with the RF7 Dual Speed Plus Nebulizer

Technical Feature of the RF7 Nebulizer

Nebulizer RF7 Dual Speed	Speed
Nebulizer RF7 Dual Speed	MIN	MAX
Delivery ml / min’ (1)	0,29	0,65
MMAD (2) μm	2,21	2,38
Respirable fraction < 5 μm (2)	84,2%	81,5%
Maximum fill volume (1)	8 ml

(1) Data shown is in accordance with Flaem Nuova internal procedure I29-P07.5. Values shown for the aerosol delivery may vary depending on the patient’s respiratory capacity.
(2) In vitro testing performed by TÜV Rheinland Italia S.r.l. in collaboration with the University of Parma and in compliance with the EN 13544-1: 2007 + A1 European Standard for aerosol therapy devices Standard. More details are available on request.
